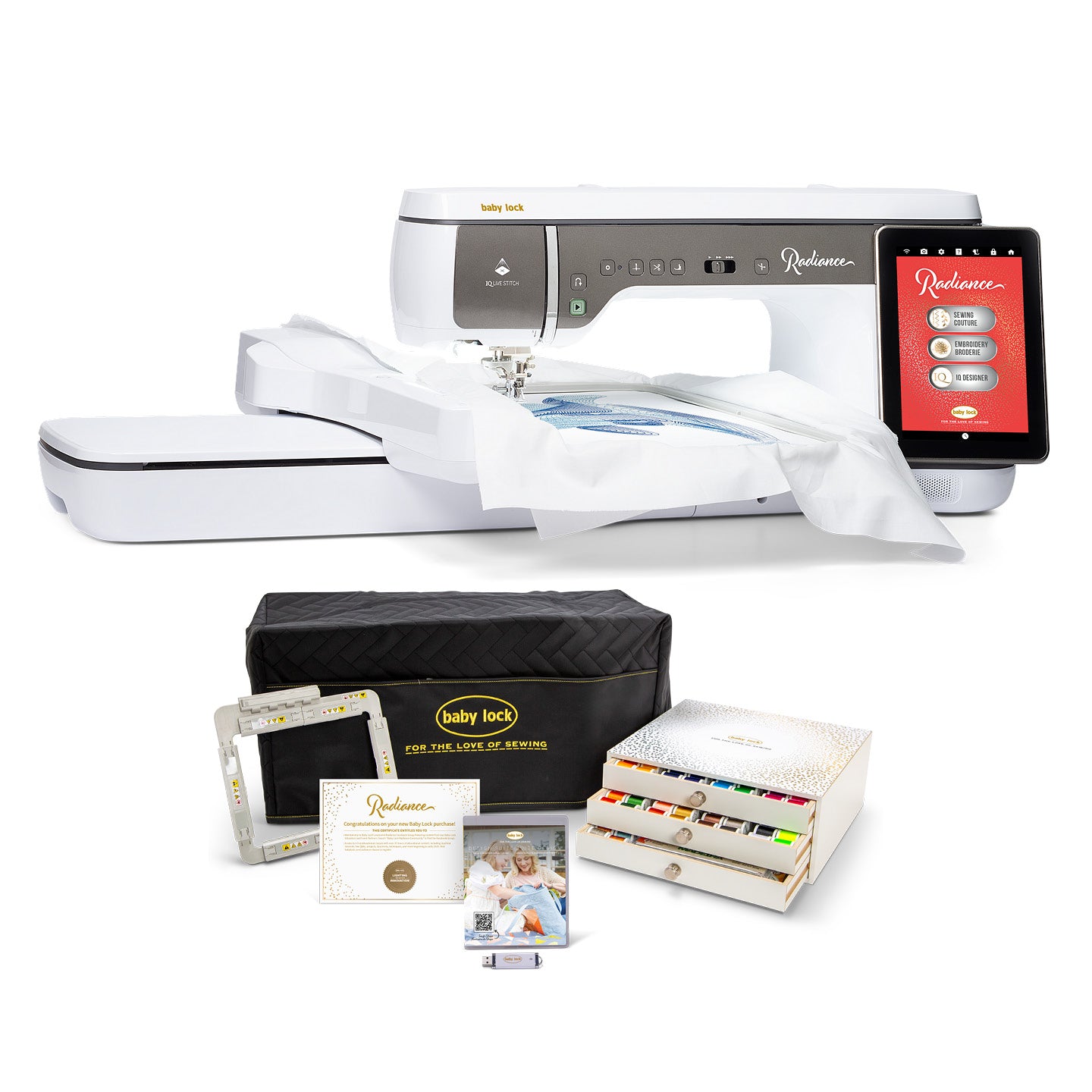

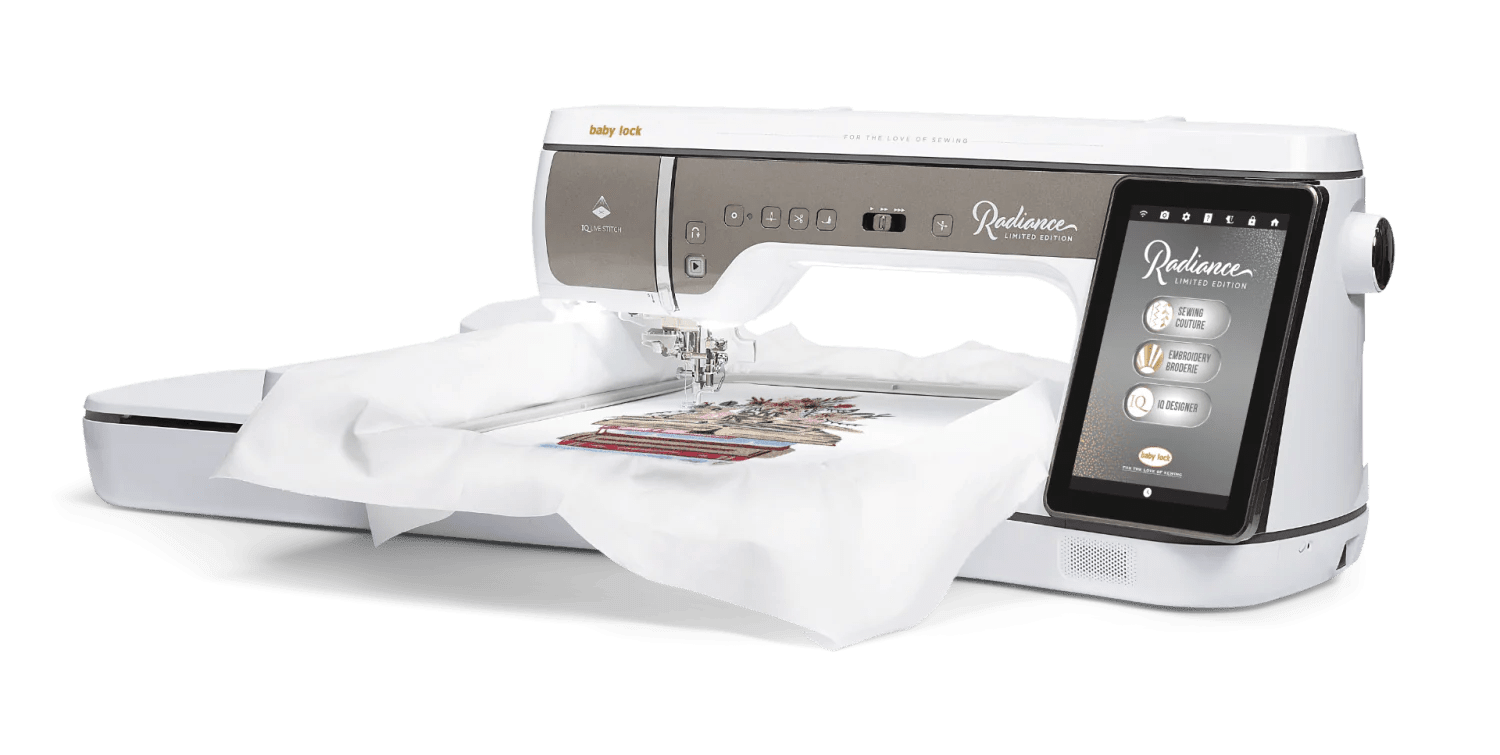

Baby Lock Radiance Sewing, Quilting & Embroidery Machine
Baby Lock Radiance Sewing, Quilting & Embroidery Machine
SKU: BA-RADIANCE
Couldn't load pickup availability
- 11 5/8" x 18 1/4" embroidery hoop: largest Baby Lock hoop available
- StitchSync regulator with three quilting modes
- 14.1" to the right of the needle for large projects
- Picture Play: convert photos to embroidery designs
This machine comes with 60 Days of FREE Online Classes with Baby Lock! *Click HERE to register!
FREE GIFTS with Purchase for a Limited Time!
Free Gifts Include:
• Radiance Quilted Machine Cover
• Madeira Thread Chest
• 5" x 7" Magnetic Frame
• Design Suite - Radiance Collection
• Radiance Facebook Group Membership
• Certificate for 6 Pre-Recorded Educational Classes
Baby Lock Radiance: Sewing, Quilting, and Embroidery
The Baby Lock Radiance combines sewing, quilting, and embroidery capabilities with a spacious 205 square inch work area. With 14.1 inches to the right of the needle, this machine handles full-size quilts and large embroidery projects without crowding.
StitchSync Regulation
The StitchSync Regulator produces smooth, consistent stitches during free-motion quilting. Select from three modes: Intermittent, Continuous, or Basting. Three interchangeable soles are included: a Quilting sole for precision stitching, an Open Toe sole for visibility, and an Echo Quilting sole for even spacing.
IQ Live Stitch Projection
The IQ Live Stitch projection system shows embroidery placement before stitching begins. The 8" x 5" projection area offers 16 background color options for clear preview on different fabrics.
Built-in Designs and Stitches
- 1,858 embroidery designs
- 1,610 built-in stitches
- 31 fonts for monograms and lettering
Largest Embroidery Hoop
The 11 5/8" x 18 1/4" (297mm x 465mm) hoop is the largest Baby Lock has produced. This size accommodates detailed designs and large quilt blocks. An embroidery table extension is included for stability during large projects.
Picture Play Embroidery
The Picture Play feature converts photos into embroidery designs. Import images up to 6MB and create stitched artwork sized for the 10" x 10" embroidery frame.
Projected Sewing Guidelines
The guideline projection system provides visual reference for straight stitching. Features include 16 laser guideline colors, three main patterns, six sub-patterns, and eight angle options.
Specifications
| Key Specs |
|
| Embroidery Features |
|
| Threading & Bobbin |
|
| Workspace & Display |
|
| Smart Features |
|
| Included Feet |
|
| Included Accessories |
|
| Warranty |
|
Special Financing Available
Apply in-store or online through Synchrony Bank.
Flexible payment plans make it easy to get the machine you want.
~$806/mo suggested payments with 36-month special financing*
or call (800) 687-5175
*Suggested monthly payments are estimates only. Actual terms subject to credit approval through Synchrony. See store for details.
Frequently Asked Questions
What is the maximum embroidery area on the Baby Lock Radiance?
The Baby Lock Radiance has a maximum hoop size of 11 5/8" x 18 1/4" (297mm x 465mm), the largest Baby Lock has produced. Four hoops are included: Extra Large (11 5/8" x 18 1/4"), Square (10 5/8" x 10 5/8"), Medium (5" x 7"), and Small (4" x 4"). The machine also provides 205 square inches of total workspace, giving plenty of room to maneuver large quilt panels and oversized projects.
What is IQ Live Stitch Projection?
IQ Live Stitch Projection casts a real-time preview of your embroidery design directly onto the fabric before a single stitch is sewn. It covers an 8" x 5" area and offers 16 background color options so you can confirm placement, size, and orientation. Combined with the NeedleCam digital camera and 9-point trial positioning, it removes the guesswork from design placement on expensive fabric.
Does the Baby Lock Radiance work as a quilting machine?
Yes. It includes a StitchSync Regulator with three modes: Intermittent, Continuous, and Basting. Three interchangeable soles (Quilting, Open Toe, and Echo Quilting) come standard. The 14.1" throat space accommodates full-size quilts, and the free-motion quilting foot, even feed system, and projected sewing guidelines with 16 laser colors make it one of the more capable quilting and embroidery combos available. See the full Baby Lock machine lineup if you want to compare other models.
How many stitches and designs does the Baby Lock Radiance have?
The Radiance includes 1,610 built-in stitches and 1,858 embroidery designs across multiple categories: Baby Lock exclusives, Sewlebrity designs, large decorative, quilting, couching, long-stitch, and crochet lace. It also has 38 font styles for monogramming. Designs can be enlarged up to 200% or reduced to 60%, and patterns can be rotated in increments as small as 0.1 degrees.
What comes in the box with the Baby Lock Radiance?
The Radiance is one of the most complete out-of-box packages Baby Lock offers. Key inclusions:
- 17 presser feet including free-motion, quilting, couching, and embroidery feet.
- 4 hoops ranging from 4" x 4" up to the 11 5/8" x 18 1/4" extra-large hoop.
- Embroidery support table and IQ Designer Scanning Frame with magnets.
- Thread King spool stand, knee lifter, twin needle, yarn guide, and couching threader.
- 60 days of free online classes and a $1,000 Baby Lock shopping spree with purchase.
