Baby Lock

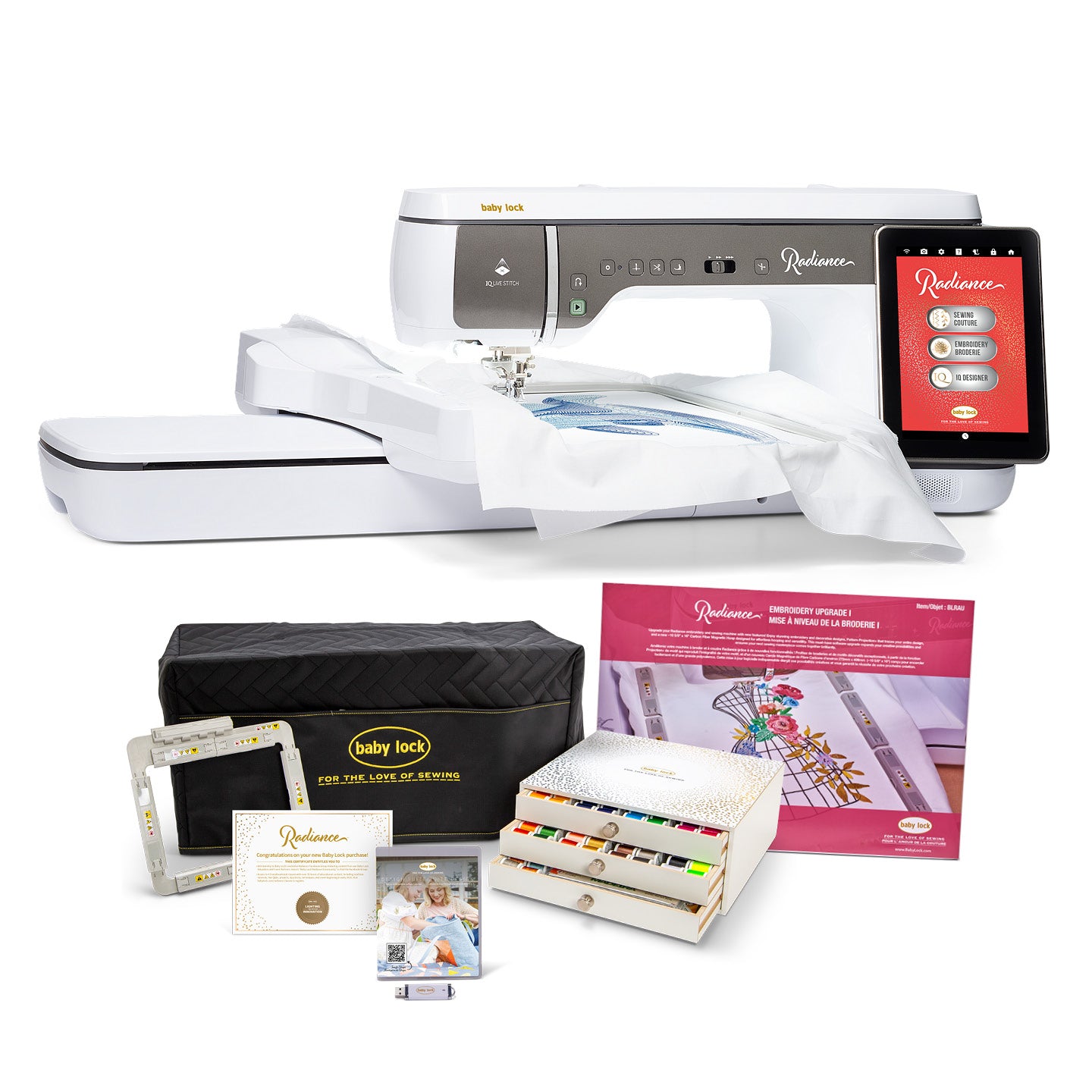

Baby Lock Radiance Sewing, Quilting & Embroidery Machine

Baby Lock Radiance Sewing, Quilting & Embroidery Machine

SKU: BA-RADIANCE

$28,999.00
View full details

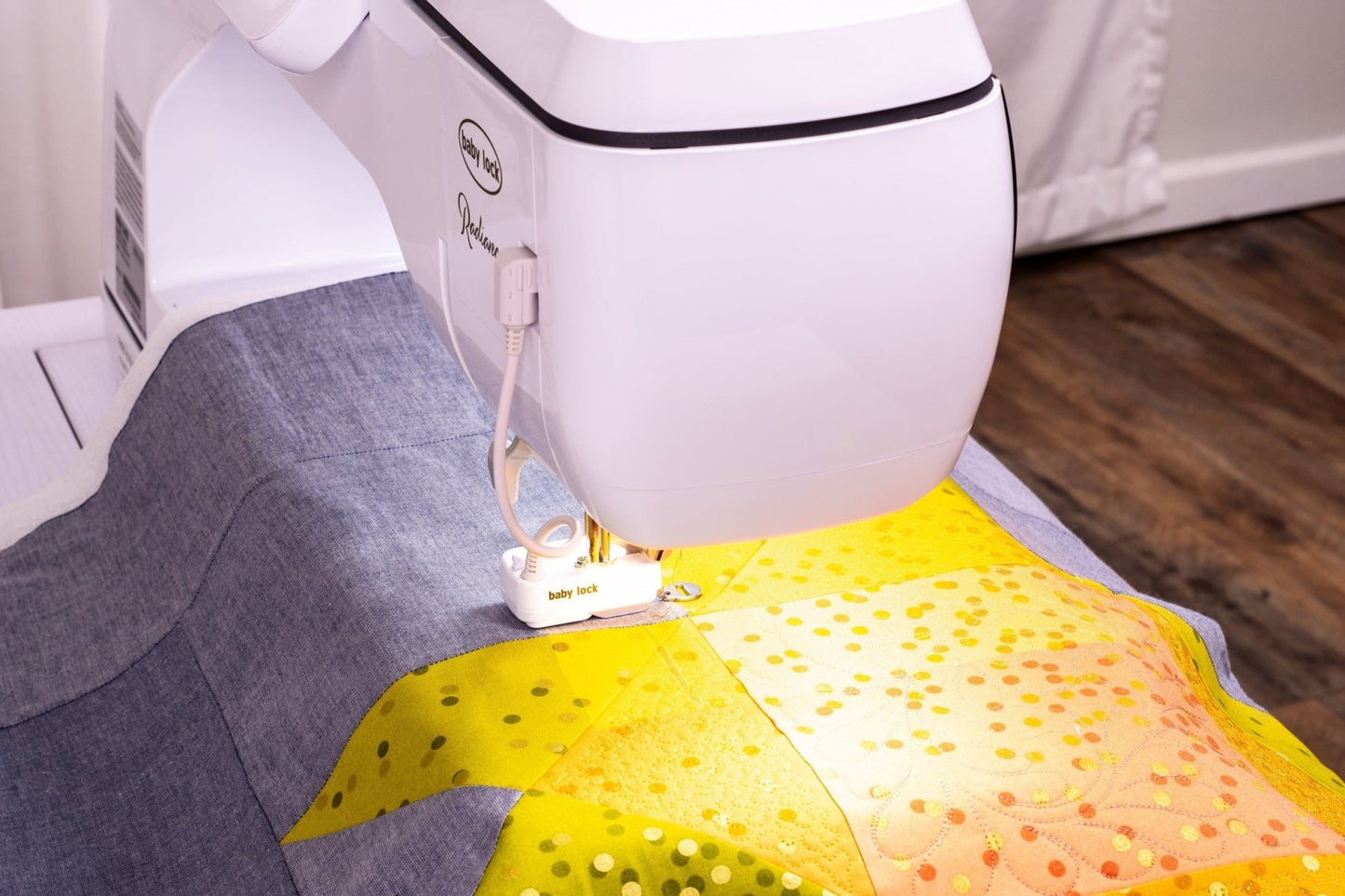

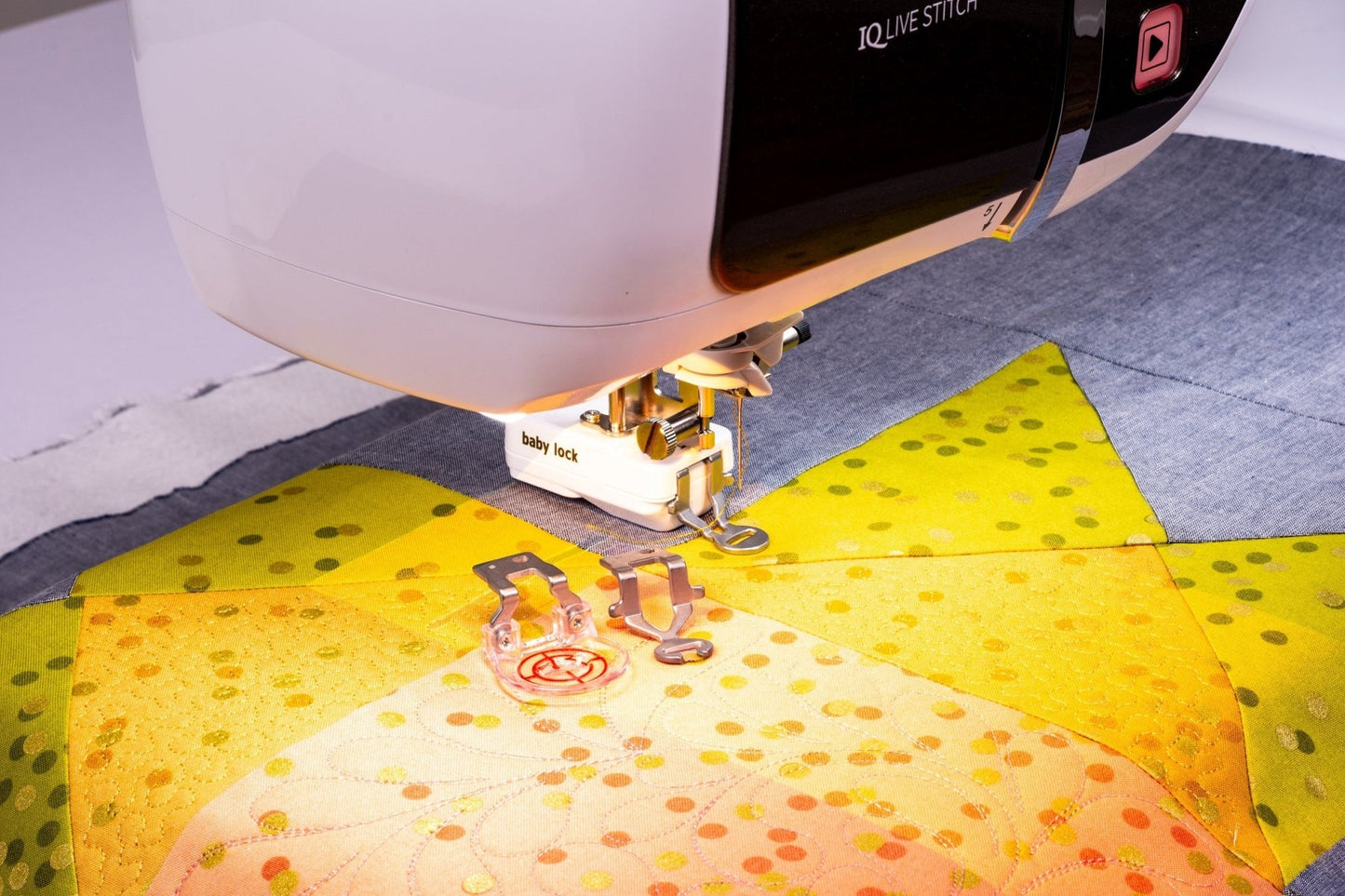

StitchSync™ Regulation

  • With the Stitch Regulator attachment choose between Intermittent, Continuous, or Basting mode for a variety of free-motion quilting techniques. This attachment has 3 interchangeable soles: quilting, open toe, and echo quilting.

11 5/8" x 18 1/4" (297mm x 465mm) Embroidery Hoop

  • This is Baby Lock's LARGEST hoop yet! Use with the included embroidery table extension for added support for large projects.

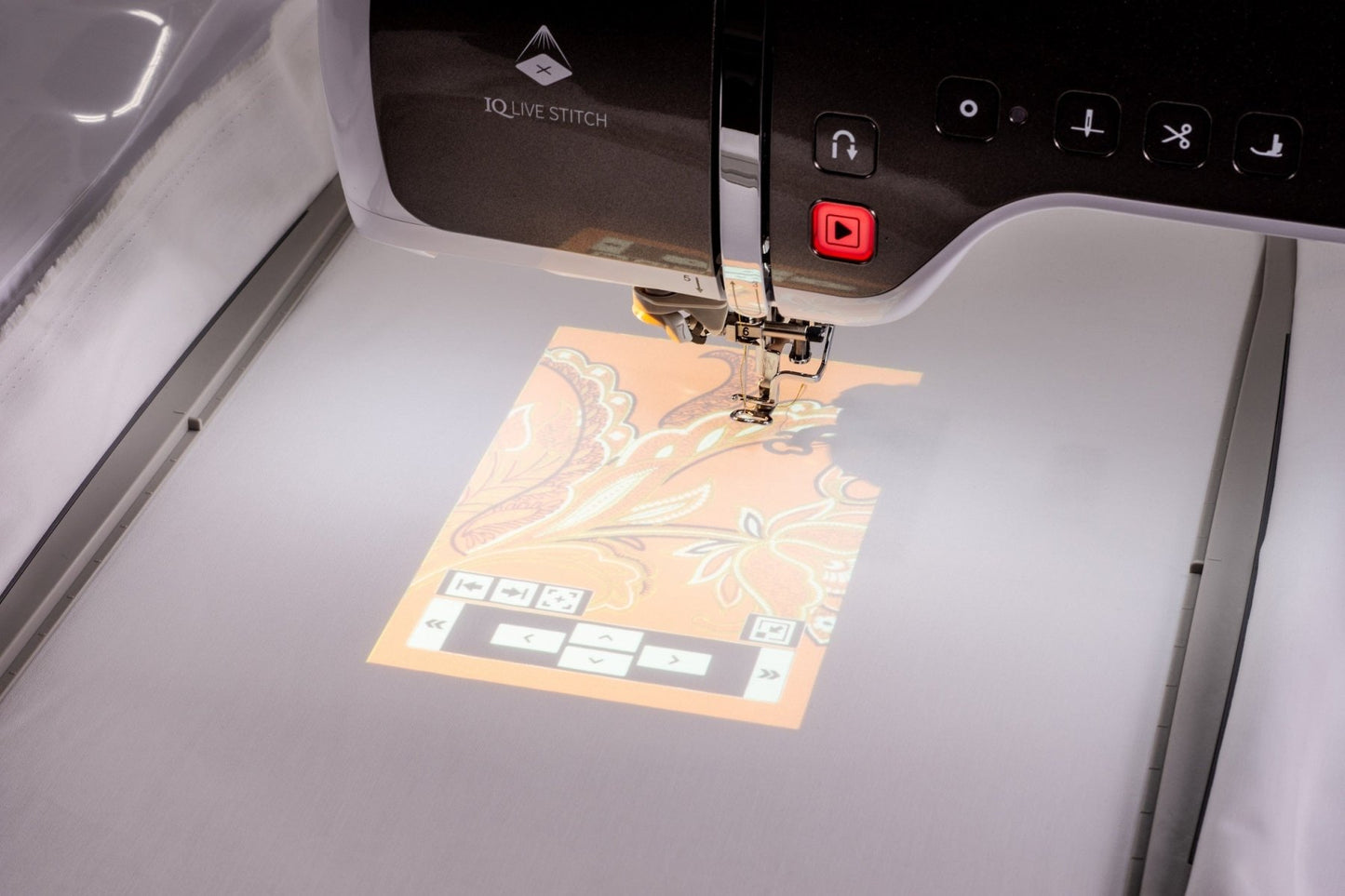

Largest Projection Area with IQ Live Stitch™

  • While in embroidery mode, select from 16 different projection background colors on fabric choices to see your design clearly in the 8" x 5" (203mm x 127mm) projection area.

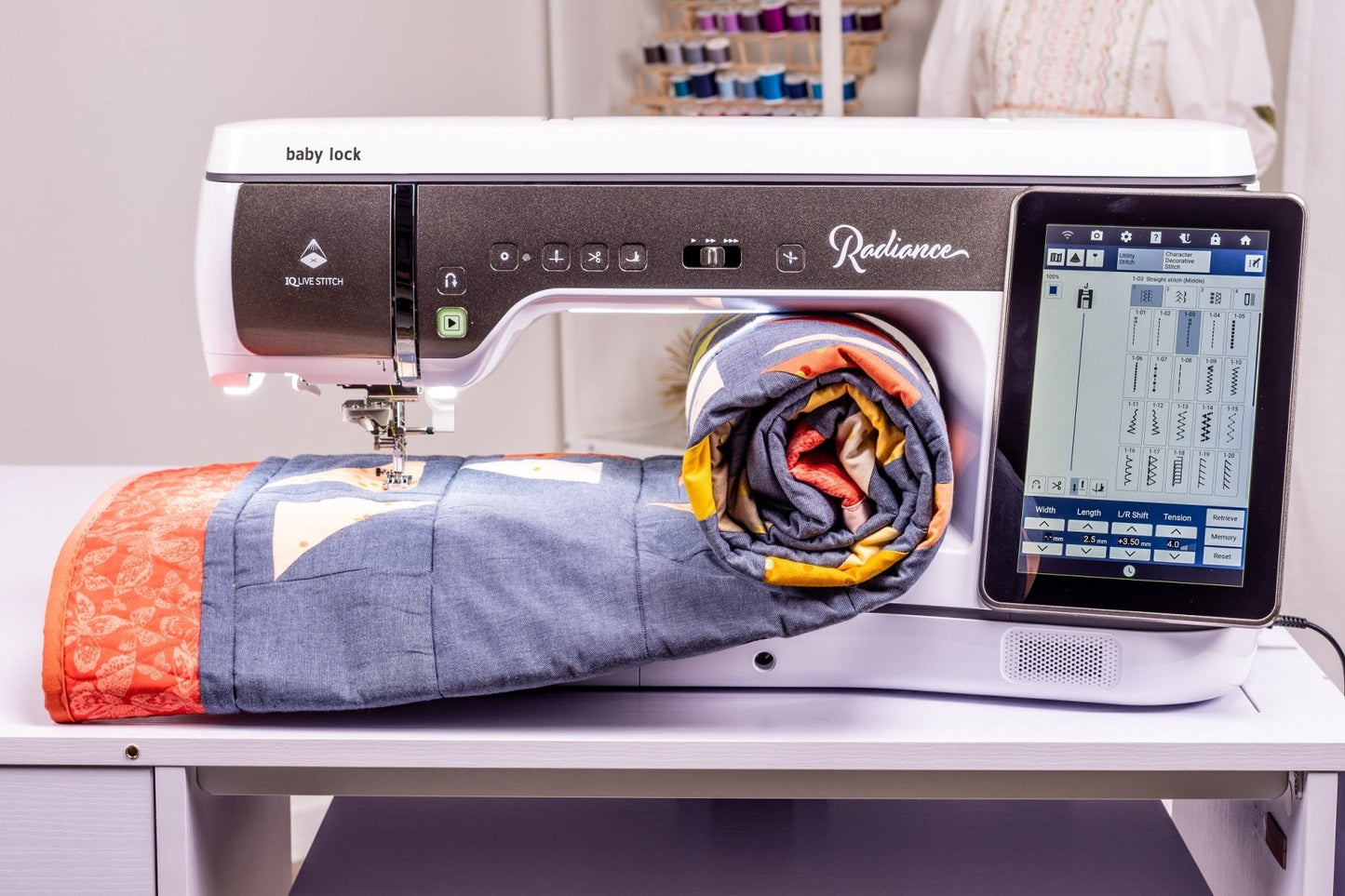

14.1" (358mm) to the Right of the Needle

  • An unprecedented 14.1" to the right of the needle for an overall workspace of 205 square inches giving you plenty of room to comfortably work on larger projects including full size quilts.

Precise Sewing Placement with Projected Guidelines

  • The Radiance uses a variety of guideline markers and grids for precise placement. While in sewing mode, switch between 16 different laser colors for better visibility. Choose from three main guideline patterns, 6 sub-guideline patterns as well as eight guideline angles.

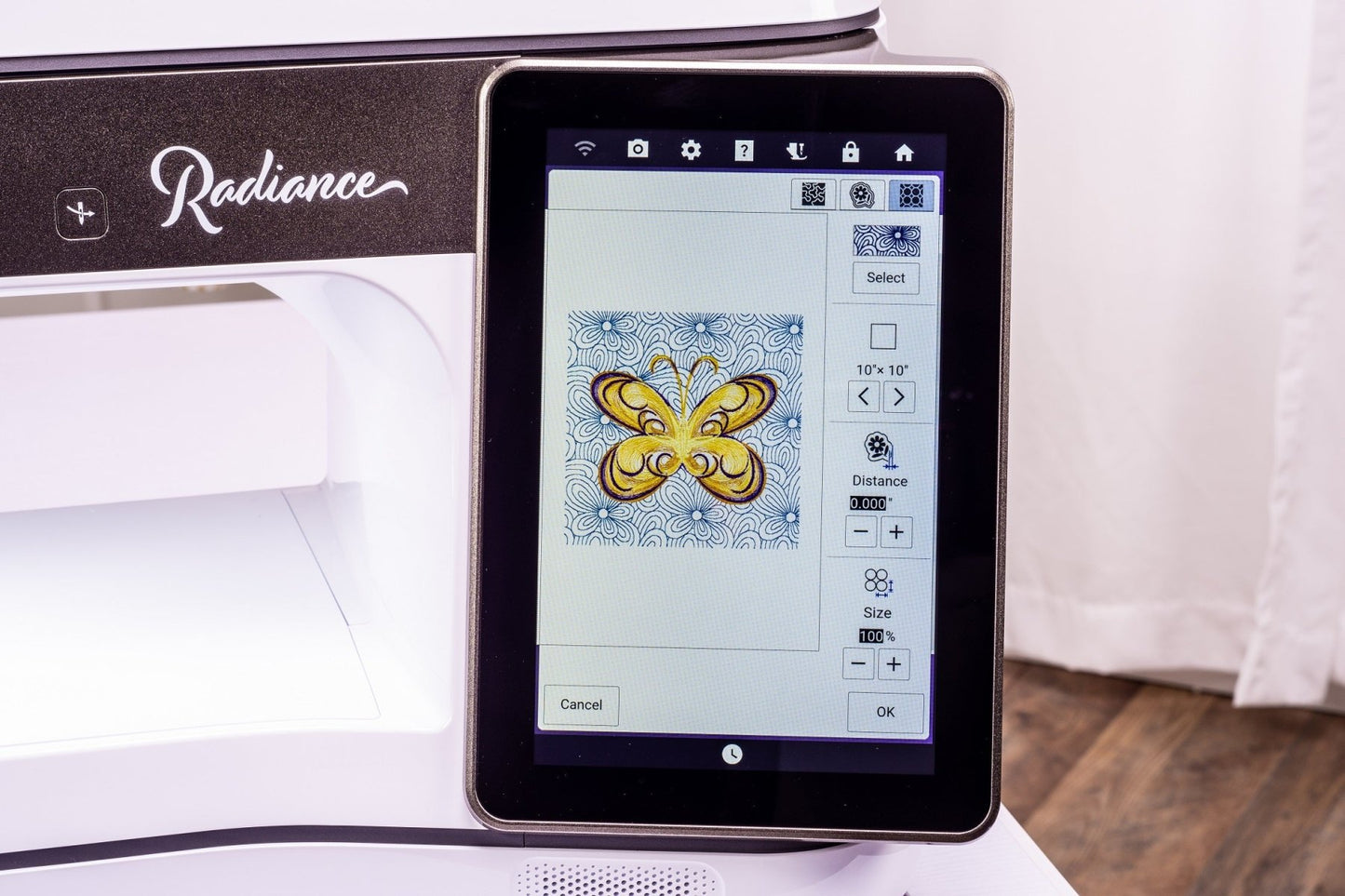

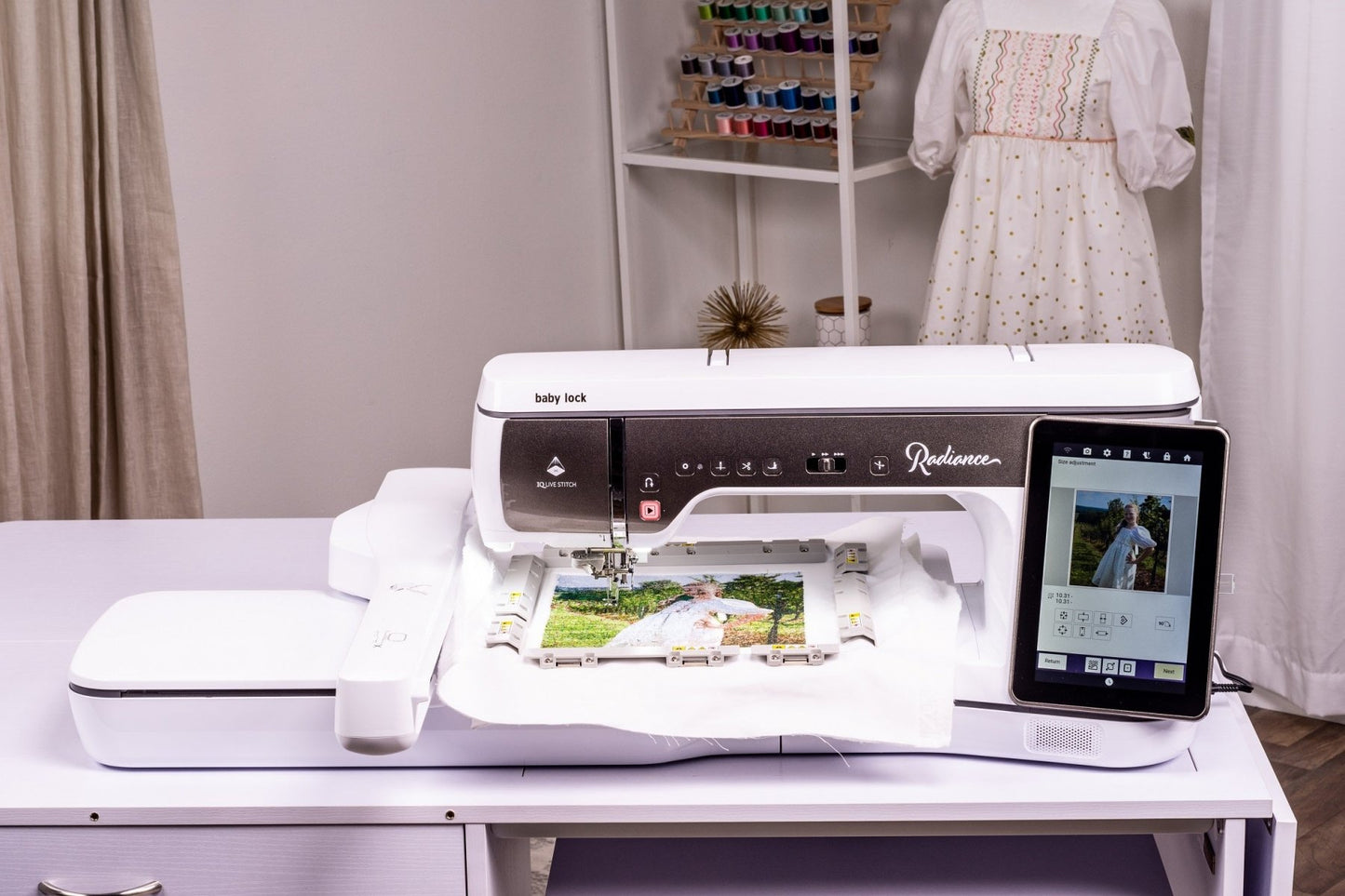

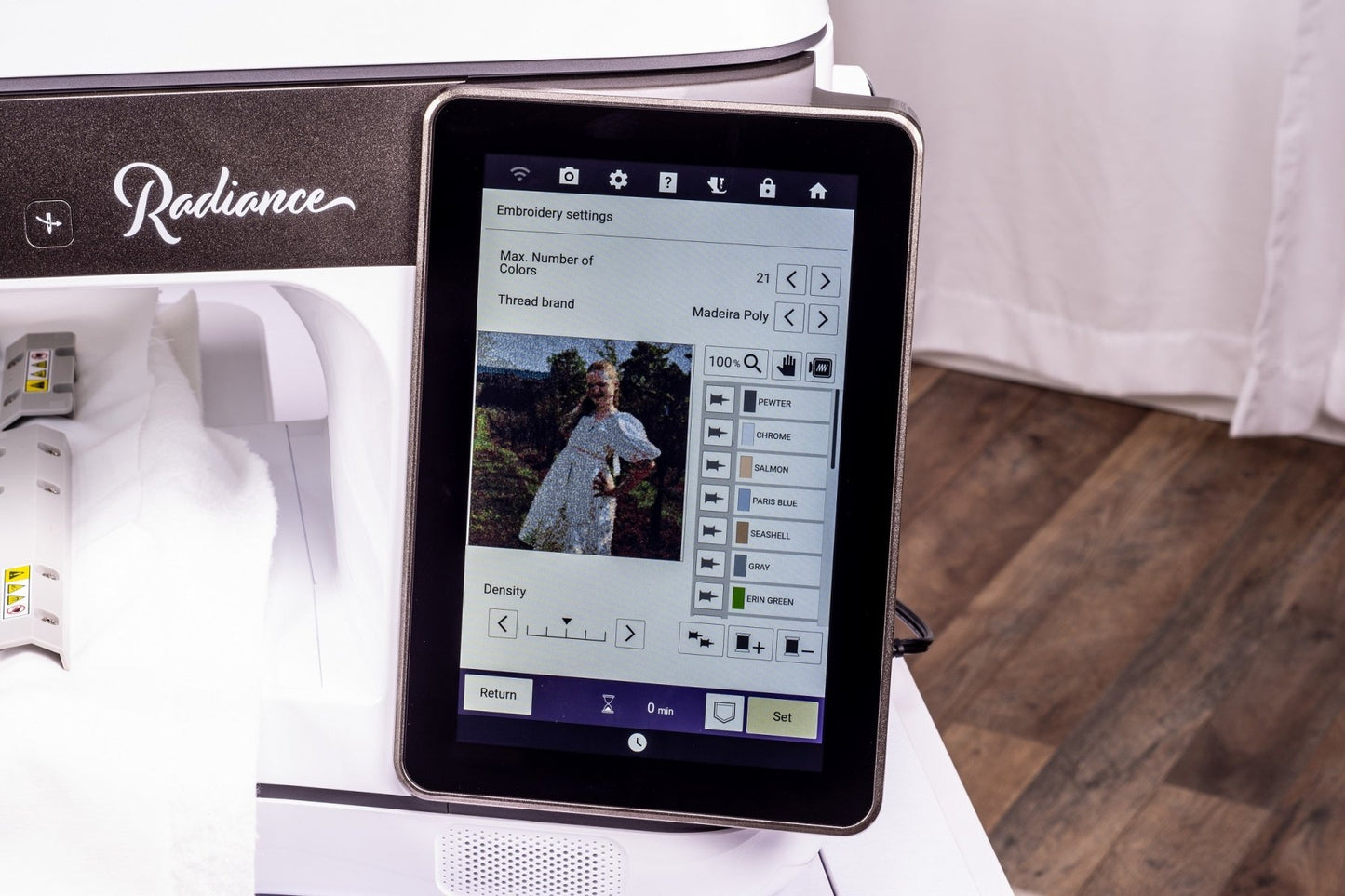

Picture Play

  • Import your own picture (up to 6MB) and select from 12 options to convert it to an embroidery design. Recommended for use with the 10" x 10" (254mm x 254mm) embroidery frame.

Features

  • New higher contrast AAA-rated WXGA IPS TFT LCD Color Touch Screen Technology
  • Voice Guidance available with some processes
  • IQ Live Stitch™
  • Projects your embroidery design or sewing stitches in an 8" x 5" (203mm x 127mm) area
  • Advance and select stitches from projection using the Dual-Purpose Stylus
  • Select background color from projection using Dual Purpose Stylus
  • Set stitch width, length, and left/right shift
  • Projection of Guide Beam, Grid, and Needle Beam for precision alignment of stitches
  • Buttonhole preview either vertically or horizontally
  • NeedleCam™ Digital Camera for embroidery and sewing positioning with faster scanning
  • Precise Touch Positioning™ using NeedleCam
  • Camera detecting buttonhole foot with stabilization plate
  • IQ Designer Scanning Frame
  • Enhanced Stadium Lighting for 14.1" (358mm) area of brighter true color LED lighting on the needle
    and work area with 5 settings
  • 2 (Type A) USB 2.0 drives
  • Wireless Wi-LAN Function
  • Directly download update files to machine
  • IQ Intuition Monitoring®
  • IQ Intuition Positioning®
  • Design Database Transfer
  • Palette 11 pattern transfer to embroidery and IQ Designer
  • NeverMiss™ Automatic Advanced Threading System
  • Digital Dual-Feed System
  • Stitch Regulator
  • Advanced Pivoting Feature and
  • Automatic Fabric Sensor System
  • Automatic sensors
  • Embroidery and sewing speed up to 1,050 spm
  • Precise tracking system on embroidery carriage
  • Resume mode for Embroidery and IQ Designer
  • Programmable shutoff capabilities
  • Eco power mode
  • Wireless mouse compatible
  • Increase in bobbin capacity 4.5m (14.75 feet)
  • Larger sewing bed and workspace with 14.1"(358mm) to the right of the needle
  • Frosted surface finish on machine bed
  • Convenient one-touch buttons for
  • Start/Stop
  • Reverse sewing
  • Reinforcement key
  • Needle up/down
  • Thread cutter
  • Automatic presser foot lift
  • Automatic needle threading
  • Sewing speed control doubles as width control

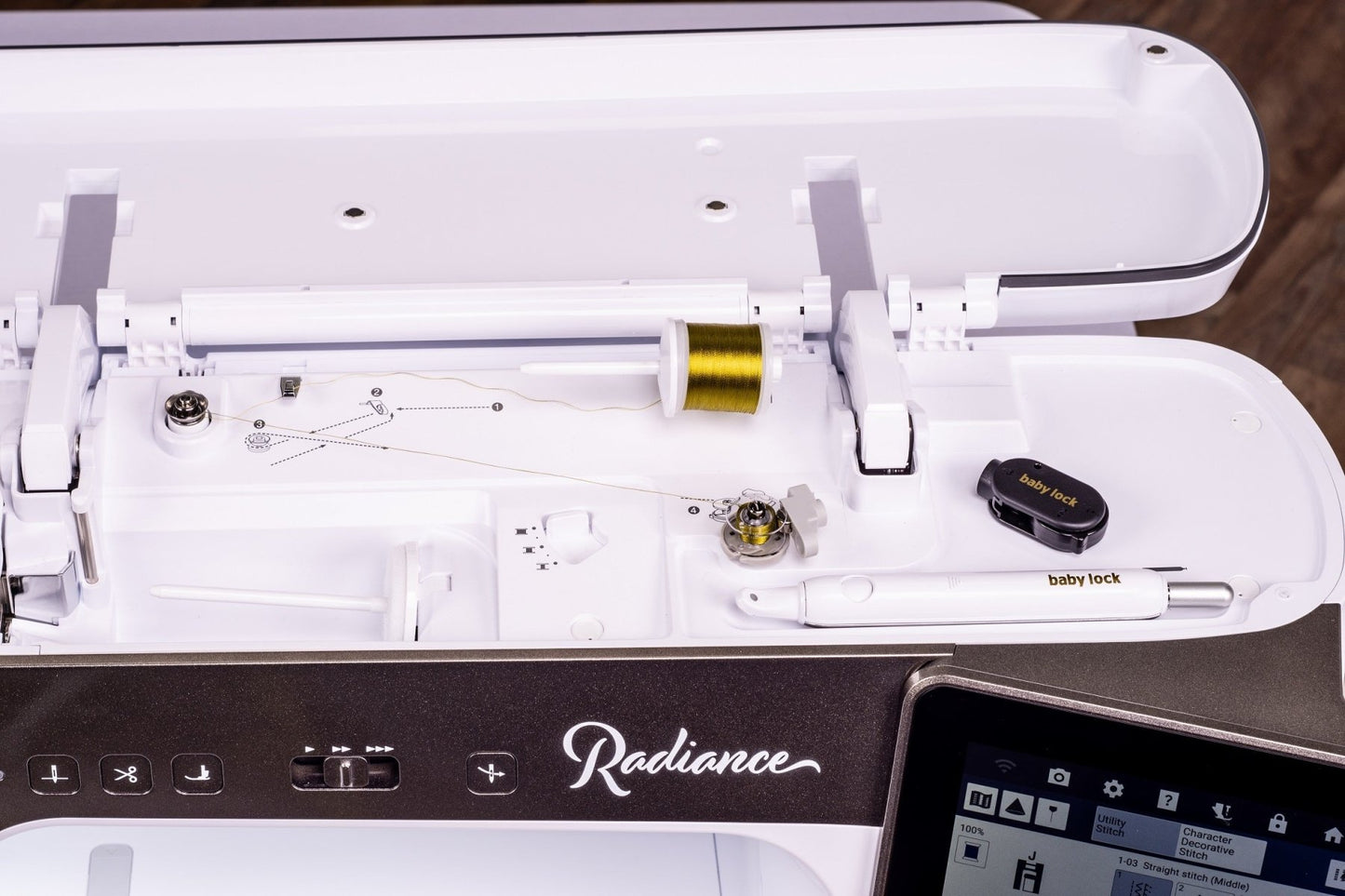

    Quick-Set, Top-Loading bobbin with sensor
    Quick-Set Independent bobbin winding system
  • One finger removable needle plate for easy access cleaning
  • Ergonomic 3-position, adjustable knee lift with extra high presser foot lift - 10mm Automatic and 13mm Manual
  • Programmable 3-step needle up/down
  • Adjustable volume with 5 settings
  • Automatic thread cutter (with on/off capability)
  • Needle plate with scale in inches and centimeters and additional guideline markings
  • Free arm
  • Foldable two-spool thread stand attaches magnetically to machine lid
  • Two accessory storage compartments in sewing tray
  • Enhanced Accessory Storage Box with 3 interchangeable trays

Included Accessories

  • Dual Purpose Stylus
  • Adjustable knee lifter with 3-position handle
  • Advanced multi-function foot controller
  • 17 Presser feet
  • 1/4" Quilting foot with a guide
  • Blind stitch
  • Button fitting
  • Camera Detecting Buttonhole foot with stabilization plate
  • Couching Dual Feed sole
  • Compact Digital Dual-Feed System
  • Embroidery foot "W"
  • Embroidery couching foot
  • Free-motion echo
  • Free-motion open toe quilting
  • Free-motion quilting
  • General purpose zigzag
  • Advanced monogramming N+
  • Overcasting
  • Stitch Regulator
  • Stitch Regulator Quilting sole
  • Stitch Regulator Open Toe Quilting sole
  • Stitch Regulator Echo Quilting sole
  • Straight Stitch
  • Zipper
  • Easy-lock accessory case for presser foot storage with 3 interchangeable trays
  • 2 Thread king spool stand for larger cones
  • Straight stitch needle plate
  • Bobbin Covers with and without markings
  • Alternate bobbin case
  • Bobbin center pin
  • Embroidery bobbin thread
  • Bobbins
  • Embroidery Positioning Stickers (2 Sheets)
  • End-point stickers (4 sheets, 243 stickers per sheet)
  • White needle calibration stickers
  • Multi-position screwdriver
  • Presser foot adaptor
  • Seam ripper
  • Scissors
  • Eyelet Punch
  • Spool nets (2)
  • Foot control
  • Twin needle
  • Yarn guide for couching
  • Yarn threader
  • Scanning frame with magnets
  • Embroidery Support Table
  • Embroidery hoops:
  • 11 5/8" x 18 1/4" (297mm x 465mm)
  • 10-5/8" x 10-5/8" (272mm x 272mm)
  • 5" x 7" (130mm x 180mm)
  • 4" x 4" (100mm x 100mm)
