Brother

Brother Innov-ís NQ3700D Sewing and Embroidery Machine

Brother Innov-ís NQ3700D Sewing and Embroidery Machine

SKU: BRNQ3700D

Sewing and embroidery combo with 313 designs and 6" x 10" embroidery field
The Brother NQ3700D features wireless design transfer, 291 sewing stitches, and a 4.85" color touchscreen with on-screen editing.

  • 313 embroidery designs including 55 Disney designs
  • 6" x 10" maximum embroidery field
  • 291 built-in stitches with 10 buttonhole styles
  • Wireless design transfer via Design Database Transfer
$6,599.99 $4,999.00
View full details

Brother Innov-ís NQ3700D: Sewing and Embroidery Combined

The Brother Innov-ís NQ3700D combines 313 embroidery designs with 291 sewing stitches in one machine. The 6" x 10" embroidery field handles large projects, while wireless design transfer lets you send designs directly from your computer without USB drives.

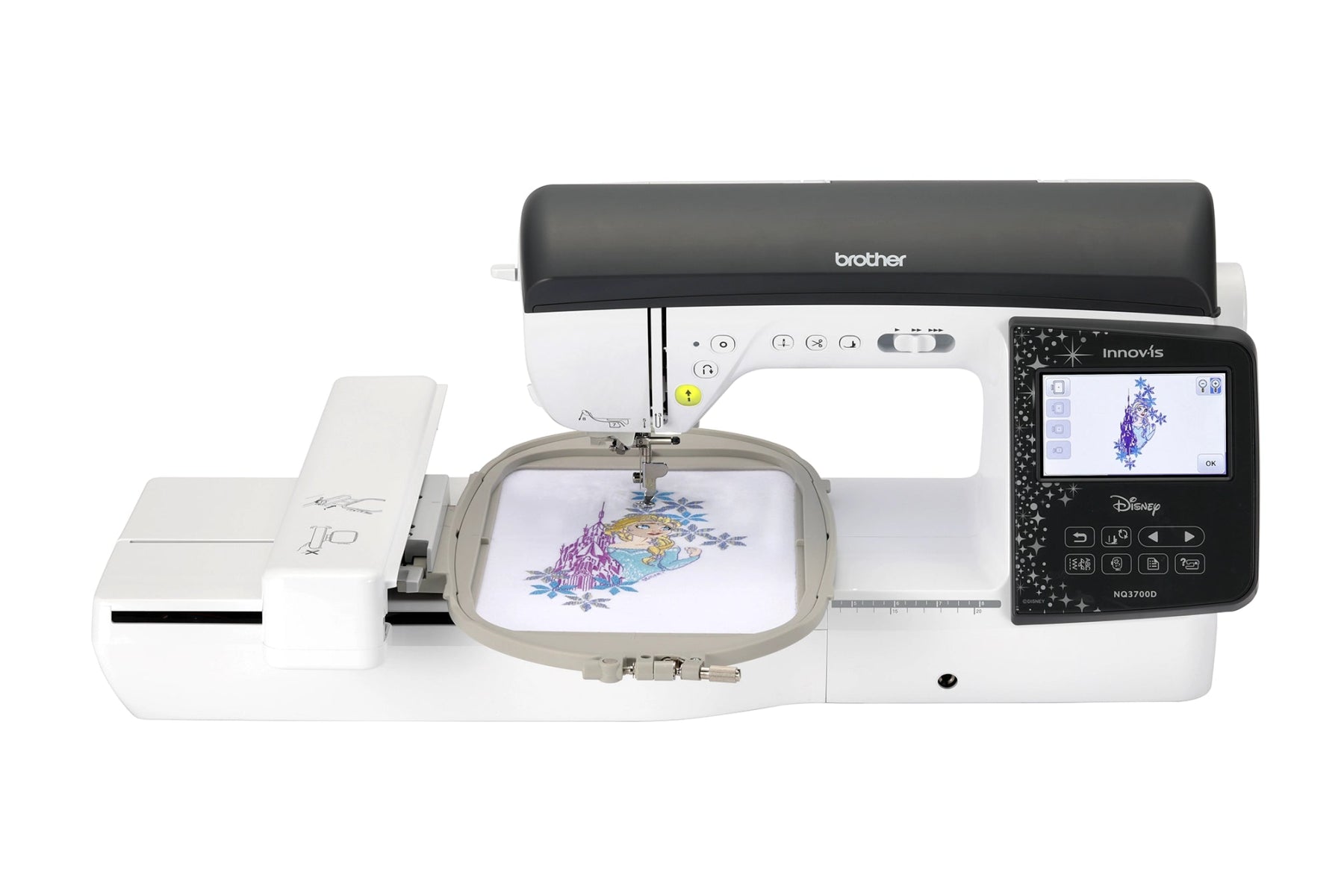

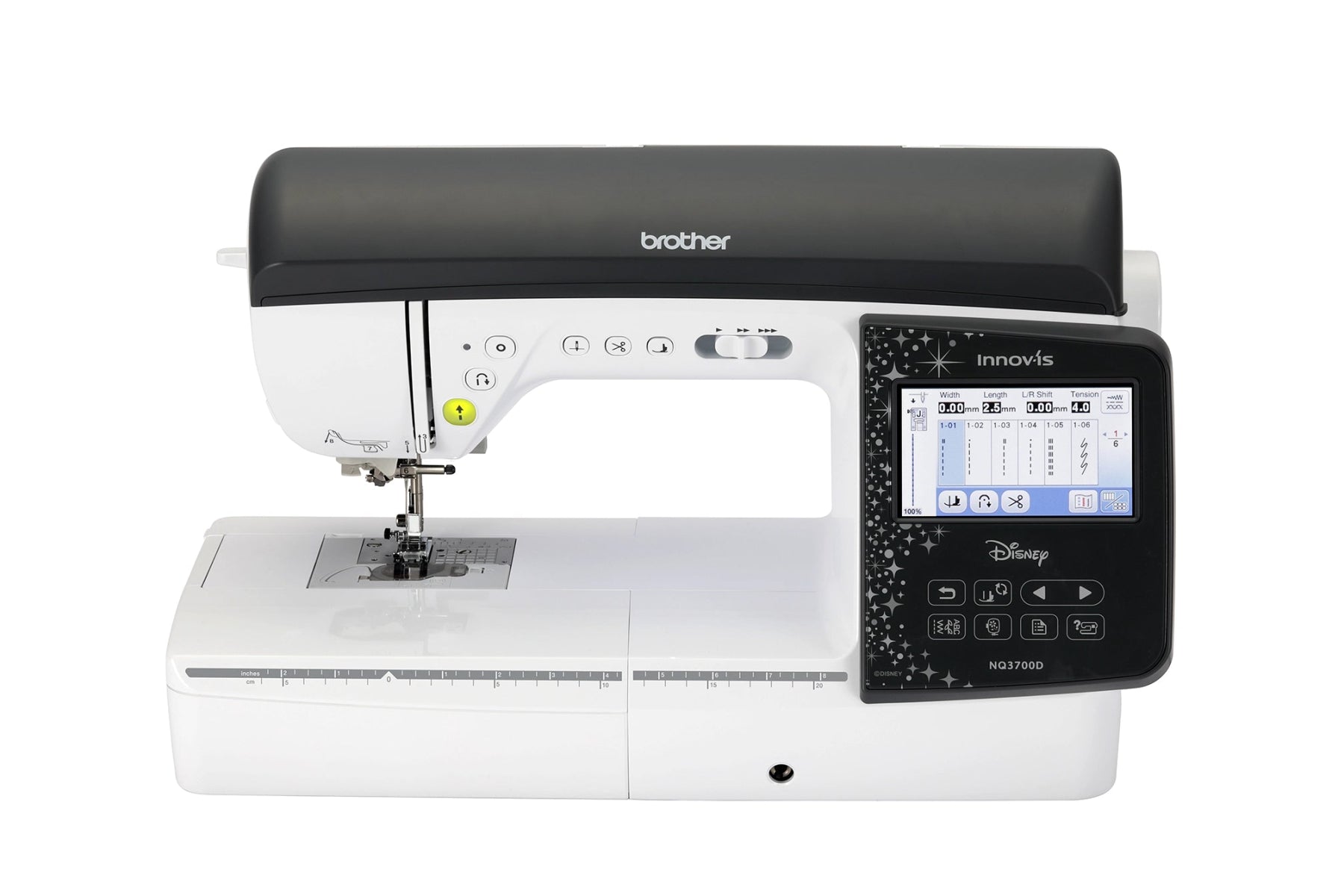

Brother Innov-ís NQ3700D front view

313 Embroidery Designs

The NQ3700D includes 313 built-in embroidery designs, featuring 55 Disney designs, 140 frame pattern combinations, and 13 lettering fonts. The 6" x 10" maximum embroidery field accommodates large designs, and the 8.3" needle-to-arm distance provides room for maneuvering fabric.

Brother Innov-ís NQ3700D touchscreen display

4.85" Color Touchscreen

The 4.85" color LCD touchscreen provides on-screen editing for embroidery designs. Resize, rotate, reposition, and combine designs directly on screen. Enhanced zoom lets you preview details, and drag and drop placement simplifies design positioning.

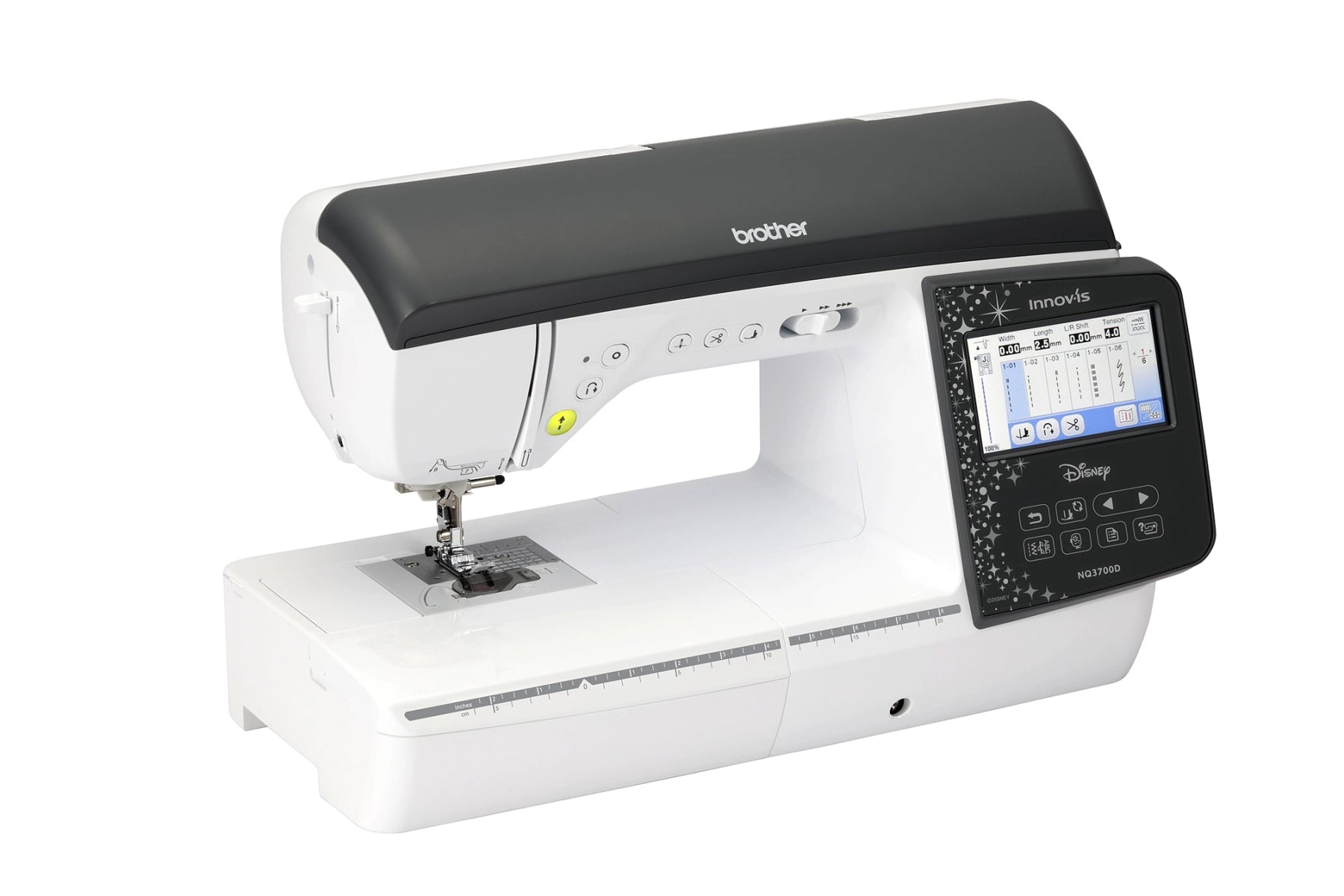

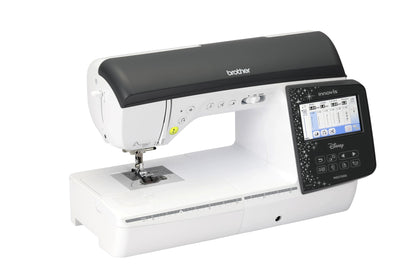

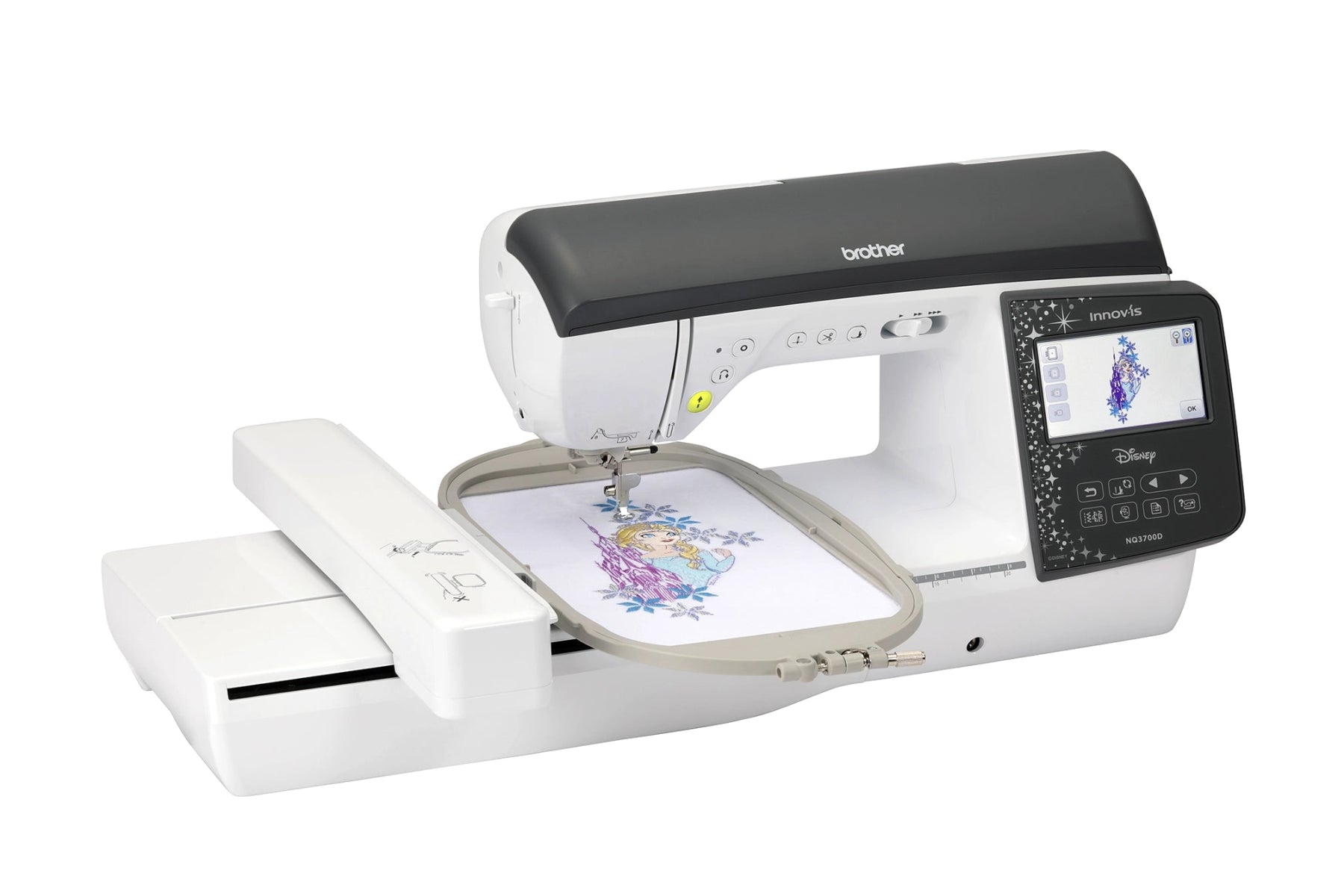

Brother Innov-ís NQ3700D side angle

291 Sewing Stitches

For sewing projects, the NQ3700D offers 291 built-in stitches, 10 styles of one-step auto-size buttonholes, and 5 sewing lettering fonts. The My Custom Stitch feature lets you combine and edit custom stitches with built-in samples.

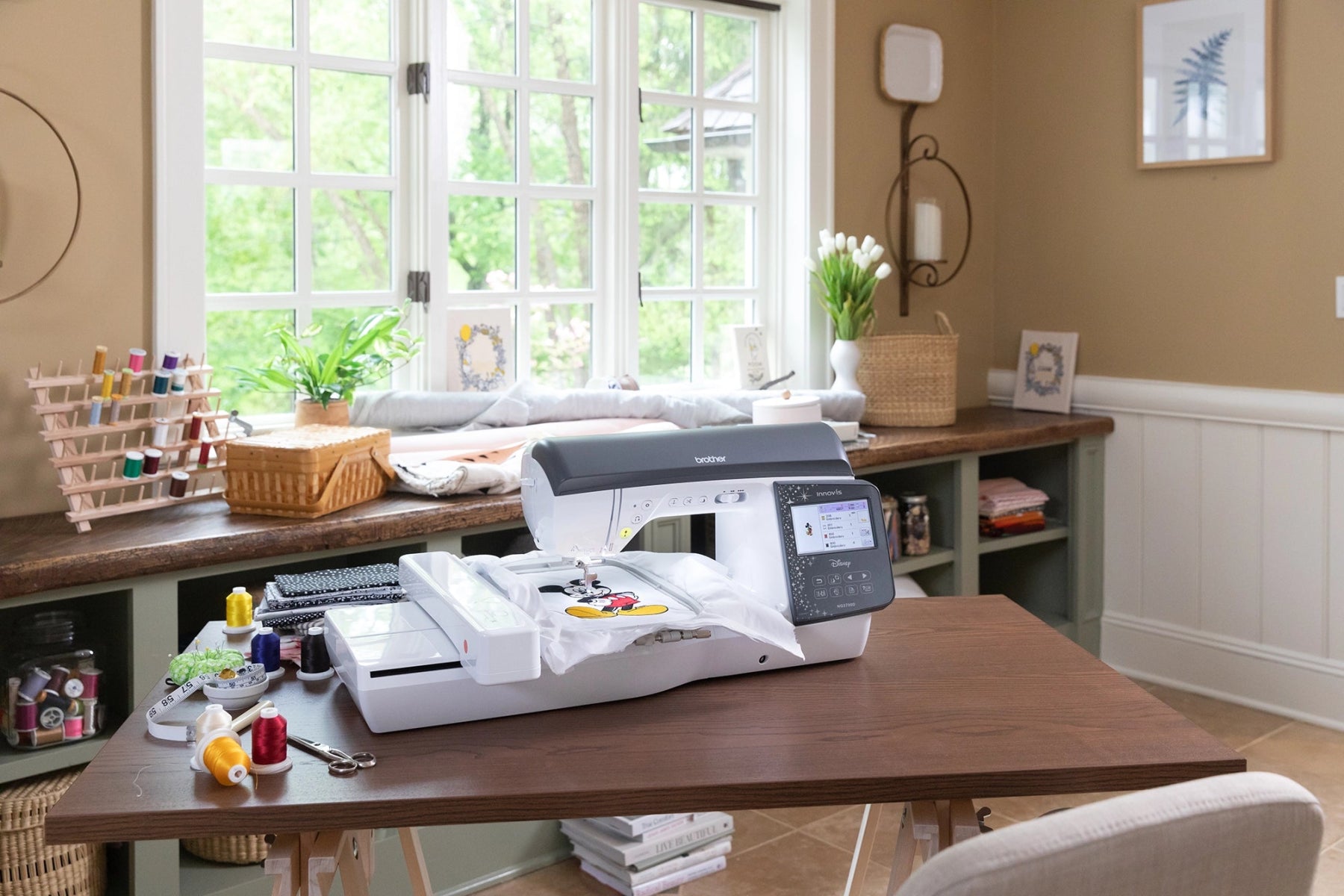

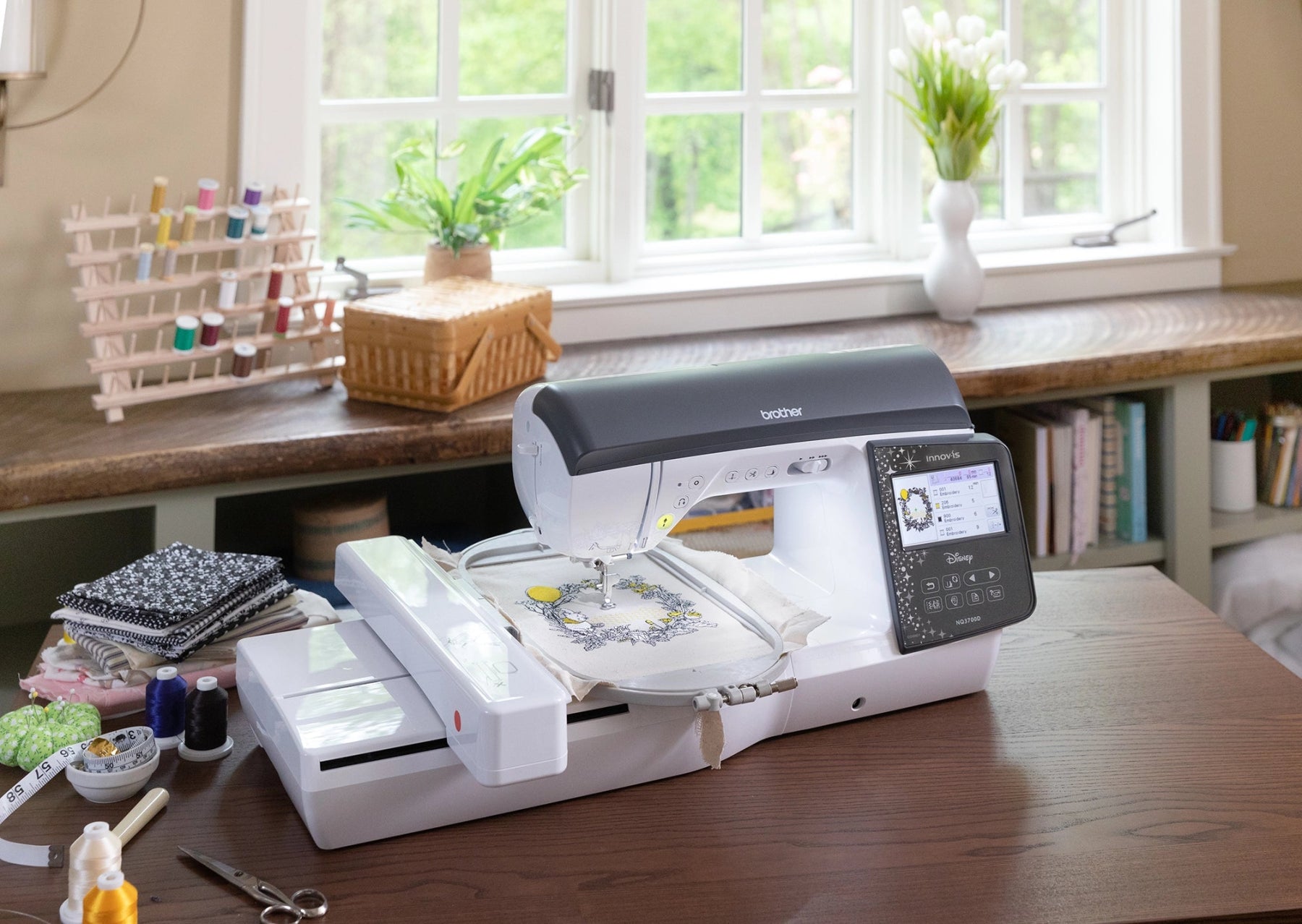

Brother Innov-ís NQ3700D workspace

Wireless Design Transfer

Connect the NQ3700D to your wireless network and send designs using Design Database Transfer. No USB drive required. The machine receives designs directly from your computer, streamlining your workflow from design selection to stitching.

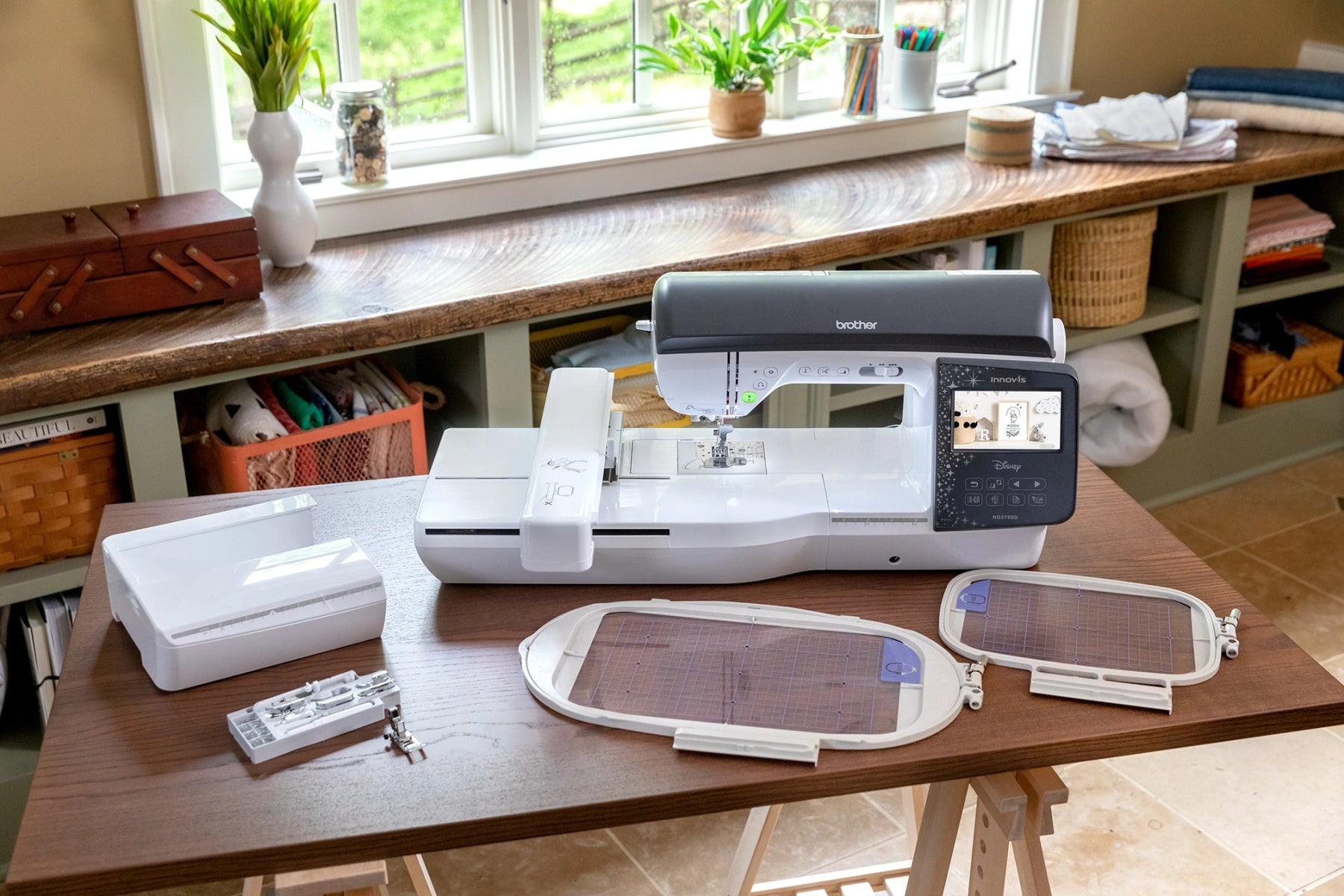

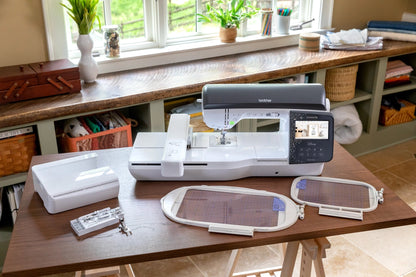

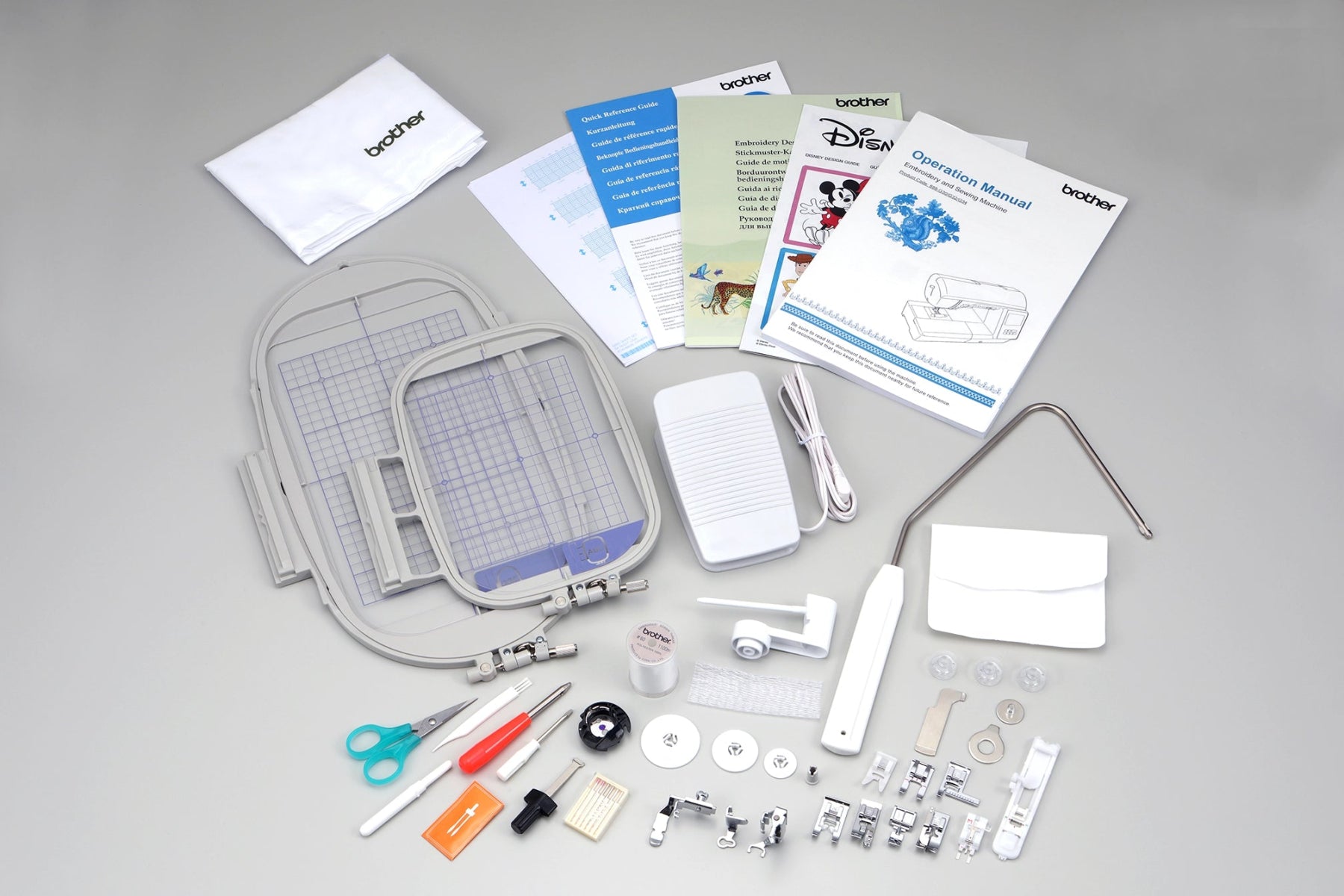

Brother Innov-ís NQ3700D included accessories

Included Accessories

The NQ3700D comes with embroidery hoops, presser feet, and accessories to get started on both sewing and embroidery projects. The package includes everything needed for garment construction, home décor, and personalized embroidery.

Precision Features

  • Automatic Height Adjuster (AHA) senses fabric thickness for consistent stitches
  • Automatic feed thread cutting trims thread between color blocks
  • Pivot function for precise corners, smoother curves, and easier chain piecing

Specifications

Embroidery Designs: 313 (including 55 Disney) | Sewing Stitches: 291 | Buttonholes: 10 one-step | Embroidery Field: 6" x 10" | Needle-to-Arm: 8.3" | Display: 4.85" color LCD touchscreen | Embroidery Fonts: 13 | Sewing Fonts: 5

The Brother NQ3700D brings sewing and embroidery together with wireless connectivity and a large embroidery field. Explore the full Brother collection at Quality Sewing to compare sewing and embroidery machines.

Meet the NQ3700D



Specifications

Key Specs
  • 291 built-in stitches
  • 10 Buttonholes
  • 313 embroidery designs (includes 55 Disney)
  • Largest embroidery area: 6" x 10"
  • 850 SPM
  • Needle Threader: Advanced Automatic
  • Thread Cutter: Automatic
  • 4.85" color LCD Display touchscreen
  • 8.3" throat space
  • 13 presser feet included
  • 25/6/2 year warranty
Sewing Features
  • 291 built-in stitches
  • 5 sewing fonts
  • 10 one-step buttonholes
  • Max stitch width: 7mm
  • Max stitch length: 5mm
  • Max sewing speed: 850 spm
  • 7-point feed dogs
  • Pivot function
  • My Custom Stitch
  • Free arm
Embroidery Features
  • 313 built-in embroidery designs (includes 55 Disney)
  • 13 embroidery lettering fonts
  • 140 frame pattern combinations
  • Max embroidery area: 6" x 10"
  • On-screen editing: zoom, rotate, reposition, drag-and-drop
  • Color sorting
  • Wireless design transfer
Threading & Bobbin
  • Advanced needle threader
  • Automatic thread tension
  • Automatic feed thread cutting system
  • Upper thread and bobbin thread sensors
  • Quick Set bobbin (top-loading, full rotary hook)
  • Standard and alternate bobbin cases included
Workspace & Display
  • 4.85" color LCD touchscreen
  • Adjustable screen brightness
  • Throat space: 8.3"
  • Bed area: 8.3" x 12.2"
  • 2 LED lights
  • Dimensions (with embroidery unit): 27.37" x 16.62" x 11.87"
  • Weight: 22.05 lbs (without embroidery unit)
Smart Features
  • WiFi enabled (wireless design transfer)
  • USB port for design import
  • Artspira app compatible
  • Automatic Height Adjuster (AHA)
  • Knee lifter included
  • Start/stop button
  • Needle up/down button
Included Feet
  • Buttonhole Foot A
  • Overcasting Foot G
  • Zipper Foot I
  • Zigzag Foot J
  • Button Fitting Foot M
  • Monogramming Foot N
  • Free-Motion Open Toe Quilting Foot O
  • Stitch Guide Foot P
  • Blind Stitch Foot R
  • Embroidery Foot U
  • Open Toe Foot
  • Non-Stick (Teflon) Foot
  • Adjustable Zipper/Piping Foot
Included Hoops
  • Extra Large Embroidery Frame: 10-1/4" x 6-1/4"
  • Large Embroidery Frame: 7" x 5"
Included Accessories
  • 4 bobbins
  • Standard and alternate bobbin cases
  • Bobbin center pin
  • Embroidery bobbin thread
  • Needles and twin needle
  • Seam ripper, scissors, cleaning brush, eyelet punch
  • Screwdrivers (large, small, L-shaped, disc-shaped)
  • Horizontal spool pin
  • Spool caps (1 large, 2 medium, 1 small)
  • Thread spool insert and spool net
  • Knee lifter
  • Foot controller
  • Grid sheet set
  • Accessory bag
  • Dust cover
  • Operation manual, quick reference guide, embroidery design guide
Warranty
  • Chassis casting: 25 years
  • Electronic components and PCBs: 6 years
  • Parts, labor, and accessories: 2 years

Features

Machine Features

  • Accessory Storage - Yes
  • Adjustable Screen Brightness - Yes
  • Automatic Thread Cutter - Yes
  • Branded Series - Disney
  • Built-in Languages - Yes
  • Display Type - LCD
  • Needle Position Key (Up/Down) - Yes
  • Needle Threading System - Advanced
  • Presser Foot Leveling - Yes
  • Quick Set Bobbin - Yes
  • Realistic Preview - Yes
  • Specialty Feet Included - Yes
  • Start/Stop Button - Yes
  • Stitch Selector Type - Touch Panel
  • Thread Sensor - Bobbin Sensor, Upper Thread Sensor
  • USB - Yes
  • Machine Weight - 22.05 lbs

Embroidery Features:

  • Automatic Feed Thread Cutting - Yes
  • Built-In Alphabet Fonts - 13
  • Built-In Designs - 313
  • Built-in Embroidery Designs featuring Disney/Pixar Characters - 55
  • Built-in Embroidery Lettering Alphabet Fonts - 13
  • Computer Connectivity - Yes
  • Drag and Drop Editing - Yes
  • Frame Designs - Shapes - 10
  • Frame Designs - Stitches - 14
  • Included Embroidery Hoops - 6" x 10", 5" x 7"
  • Maximum Embroidery Speed (spm) - 850
  • Monogramming Font Styles - Yes
  • My Custom Design Feature - No
  • On-Screen Editing - Yes
  • On-Screen Help - Yes
  • Pattern Rotating Increments - 1 Degree, 10 Degrees, 90 Degrees
  • Programmable Monochrome Embroidery - N/A
  • Resume Function - No
  • Standard Included Frames - 5" x 7", 6" x 10"
  • Thread Anchor - N/A
  • Thread Wiper - No

Sewing Features

  • Automatic Height Adjustment (AHA) - Yes
  • Back to Beginning Key - No
  • Built-In Lettering Fonts - 5
  • Built-In Stitch Selections (Stitches) - 291
  • Button Hole Styles - 10
  • Knee Lifter - Yes
  • Maximum Sewing Speed (Stitches Per Minute) - 850
  • My Custom Stitch Feature - Yes
  • Pivot Function - Yes
  • Speed Control - Yes
  • Stitch Length (mm) - 5
  • Stitch Width (mm) - 7

Included Feet

  • Buttonhole Foot
  • Button Fitting Foot
  • Zipper Foot
  • Overcasting Foot
  • Blindstitch Foot
  • Monogramming Foot
  • Zigzag Foot
  • Embroidery Foot
  • Open Toe Foot
  • Non-Stick Foot
  • Adjustable Zipper/Piping Foot
  • Free-Motion Quilting Foot
  • Stitch Guide Foot
