Juki

Juki HZL-DX7 Sewing Machine

Juki HZL-DX7 Sewing Machine

SKU: JUHZLDX7

Regular price $1,629.00
Sale price $1,629.00 Regular price $2,299.00 29% off

The Juki HZL-DX7 sew smoothly and quietly while offering a durable machine. Get the most out of your sewing experience with the Reliable and precise features that you can customize to meet your sewing needs.

Power that's discreet combines with accurate stitching that makes sewing

  • Float Function and Box Feed for heavy and high-pile fabrics
  • Automatic thread trim, lock stitch, and presser foot lift
  • 11 buttonholes with sensor system for ideal outcomes on every fabric
$2,299.00 $1,629.00
View full details

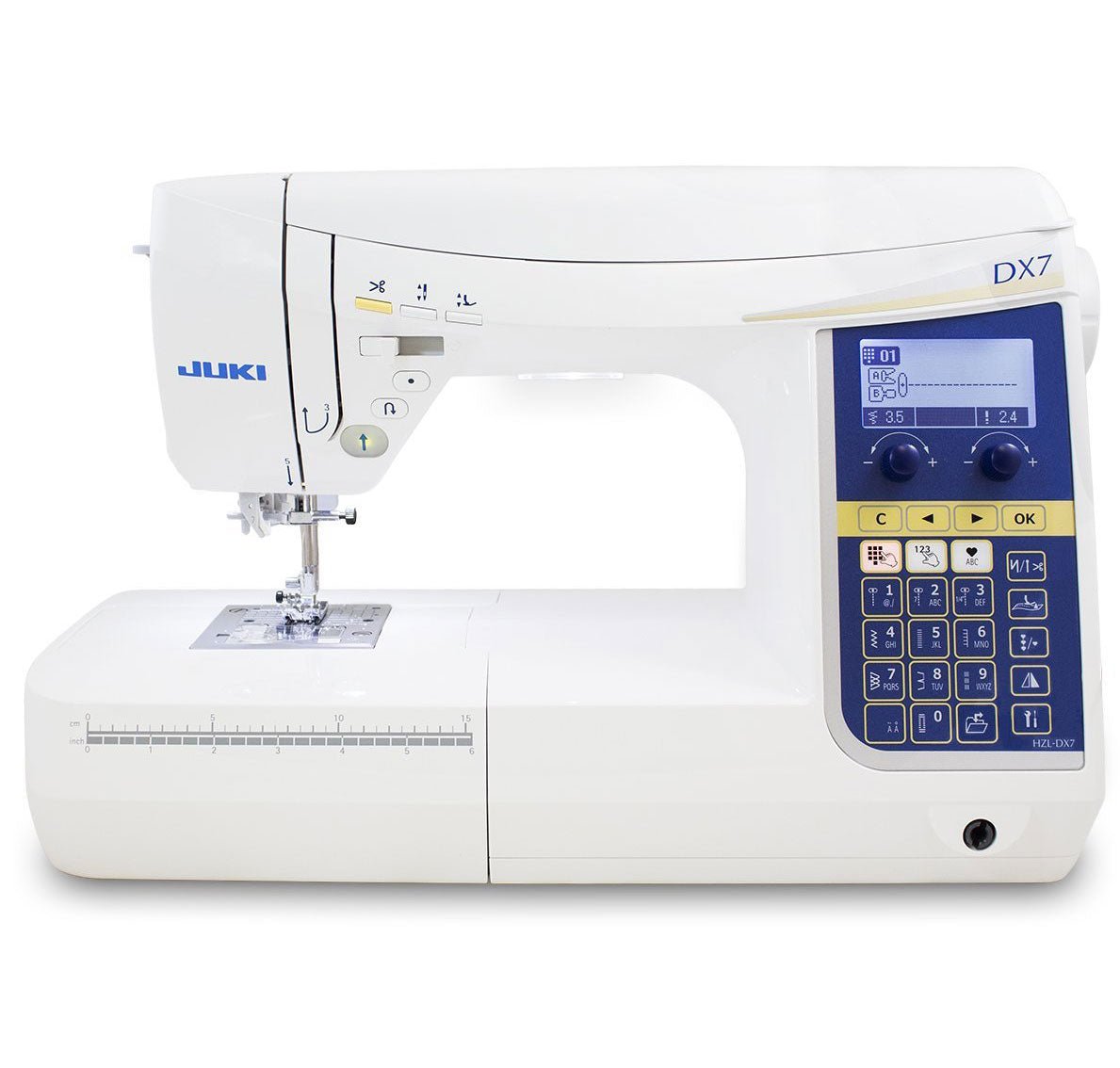

Juki HZL-DX7 Sewing Machine

The Juki HZL-DX7 is a computerized sewing machine with Juki's industrial box feed system, automatic thread trimming, and sensor-operated buttonholes. It handles heavy denim and layered fabrics with the same feed technology used in Juki's commercial machines.

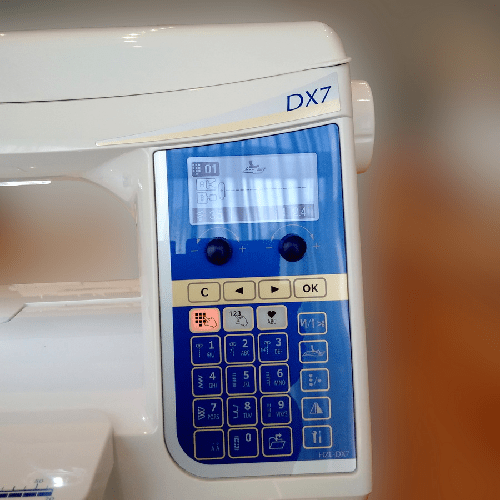

Juki HZL-DX7 front view showing LCD display, keypad, and DX7 branding

Automation and Controls

Automatic thread trimming, reverse stitching, lock stitch, and presser foot pivot are all one-button operations. The sensor-operated buttonhole system produces consistent results across different fabric weights. The LCD screen shows stitch settings, width, and length adjustments, with a phone-style keypad for direct pattern and letter selection.

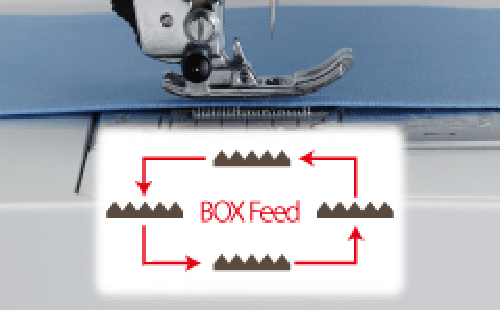

Juki box feed system diagram showing even fabric feeding motion

Industrial Box Feed System

The box feed system, adapted from Juki's industrial machines, moves the feed dogs in a square motion instead of an oval. This feeds fabric more evenly and prevents shifting, especially on heavy materials like denim and multiple layers. Adjustable presser foot height and speed control give additional precision for different fabrics.

Key Features

  • Industrial box feed system for even fabric feeding
  • Automatic thread trimming with one-touch operation
  • Sensor-operated buttonholes
  • LCD screen with direct pattern selection keypad
  • Needle up/down positioning
  • Adjustable speed control and presser foot height
  • Customizable sewing settings

See the full Juki collection at Quality Sewing to compare sewing machines.

Specifications

Key Specs

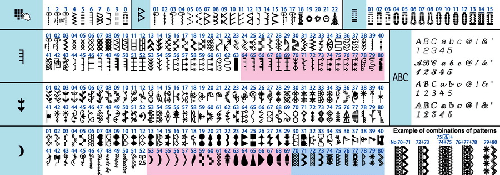

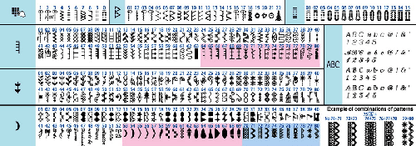

  • 287 Built-in Stitches
  • 16 Sensor One-Step Buttonholes
  • 1,050 SPM
  • Needle Threader: Automatic
  • Thread Cutter: Automatic
  • LCD Display
  • 8" Throat Space to the right of the needle
  • 5 Presser Feet Included
  • Box Feed System for Industrial Quality
  • 5/1 Year Limited Warranty
Sewing Features
  • Built-in Stitches: 287
  • Max Sewing Speed: 1,050 stitches per minute (adjustable: fast, normal, slow)
  • Max Stitch Width: 7mm (0.3 in.)
  • Max Stitch Length: 5mm (0.2 in.)
  • Buttonholes: 16 styles with sensor system
  • Fonts: 4 alphabetic and numeric fonts
  • BOX Feed Technology: Industrial-grade feed system for consistent stitching
Threading & Bobbin
  • Needle Threader: Automatic
  • Thread Trimmer: Automatic (button or heel-activated)
  • Needle System: 130R / 705H
  • Bobbin Type: 15 Class
Workspace & Display
  • Wide Table: Included
  • Knee Lifter: Included
  • Weight: 21.6 lbs
  • Dimensions: 17.5 x 11.5 x 8.25 in. (W x H x D)
Smart Features
  • Free Motion: Straight stitch and zig-zag with drop feed dogs
  • Straight Stitch Slide Plate: Single needle hole plate for precision
  • Lock Stitch: Two kinds of reverse stitch and lock stitch options
  • Adjustable Starting and Reverse Stitch Speed
  • Corner Sewing for Appliqué: Automatic stitch width gradation
Included Feet
  • Presser Foot Lift: Electronic
  • Presser Foot Pivot Function: Automatic foot lift when stopped for fabric repositioning
  • Foot Pressure: Adjustable
  • Shank Type: Low
  • Included Feet: Standard, Zipper, Overcasting, Blind Stitch, Buttonhole, Manual Buttonhole, Open Toe, Edge Sewing, Smooth, Patchwork, Quilt, Walking Foot
Included Accessories
  • Hard case
  • Wide table
  • 12 presser feet (Standard, Zipper, Overcasting, Blind Stitch, Buttonhole, Manual Buttonhole, Open Toe, Edge Sewing, Smooth, Patchwork, Quilt, Walking Foot)
  • Knee lifting lever
  • Foot controller
  • Bobbins
  • Needle set
  • Twin needle
  • Quilt guide
  • Auxiliary spool
  • T-shape screwdriver
  • Seam ripper
  • Cleaning brush
  • Spool cap
  • Eyelet punch
  • Power cord
  • Instruction manual
  • Operations support DVD
Warranty
  • 5-Year Limited Warranty on Head
  • 1-Year Limited Warranty on Electronics
  • 1-Year Quality Sewing Warranty
